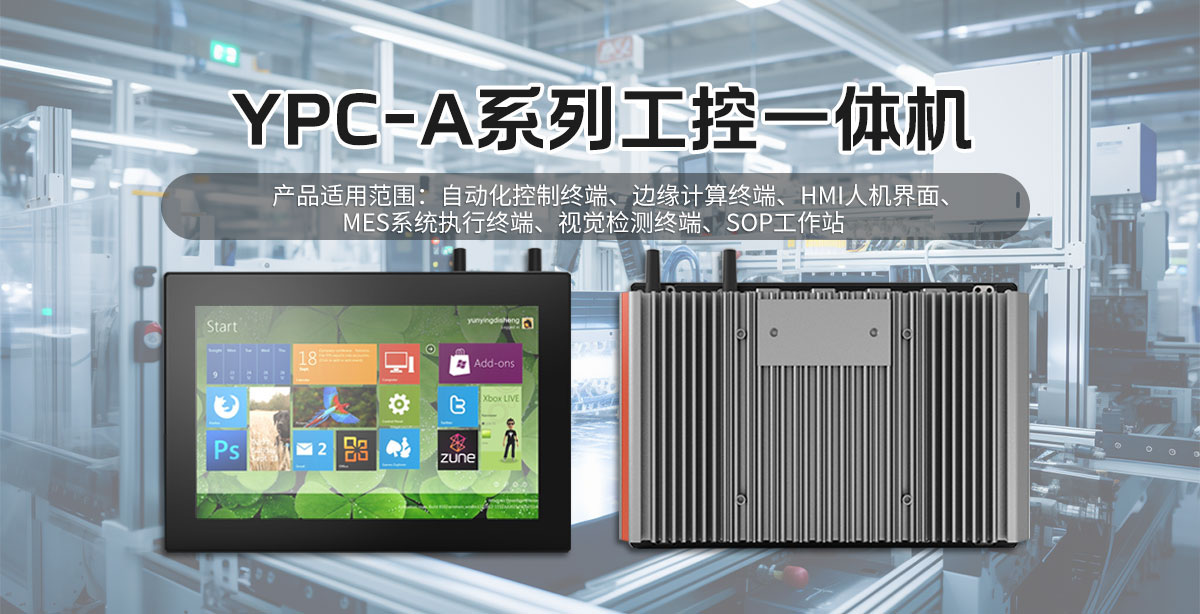

SK‑YPC‑A133 13.3 Inch Embedded Industrial All‑in‑One PC, Workshop On‑site Touch Operation Terminal
SK-A
Fan‑less passive cooling, Aluminum housing, Embedded mounting, Capacitive touch, 7th/10th/12th Gen Intel Core i3/i5/i7 optional, Windows / Linux supported
SK‑YPC‑A133 is 13.3‑inch embedded industrial all‑in‑one pc with fan‑less passive cooling aluminum housing. It is designed for workshop on‑site touch operation, supporting embedded installation, multiple processor options and flexible interface customization for industrial HMI projects.
SK‑YPC‑A133 Series Overview
Pre‑order Features: Embedded cabinet installation, industrial capacitive touch screen, compact aluminum housing, fan‑less passive cooling, stable workshop continuous operation
[Introduction] Compact body design with outstanding heat dissipation performance. System and interfaces are customizable. Shock‑proof, anti‑magnetic, sensitive touch response, perfectly adapt to complex factory‑site working conditions.
[System] Intel Core i3‑i5‑i7 7th /10th /12th generation processor optional.
[Heat Dissipation] Compact aluminum alloy housing, fan‑less passive heat dissipation structure, low failure rate for long‑time 7×24‑hour running.
[Environment] Dust‑proof and anti‑interference, wide temperature support, suitable for various harsh workshop environments.

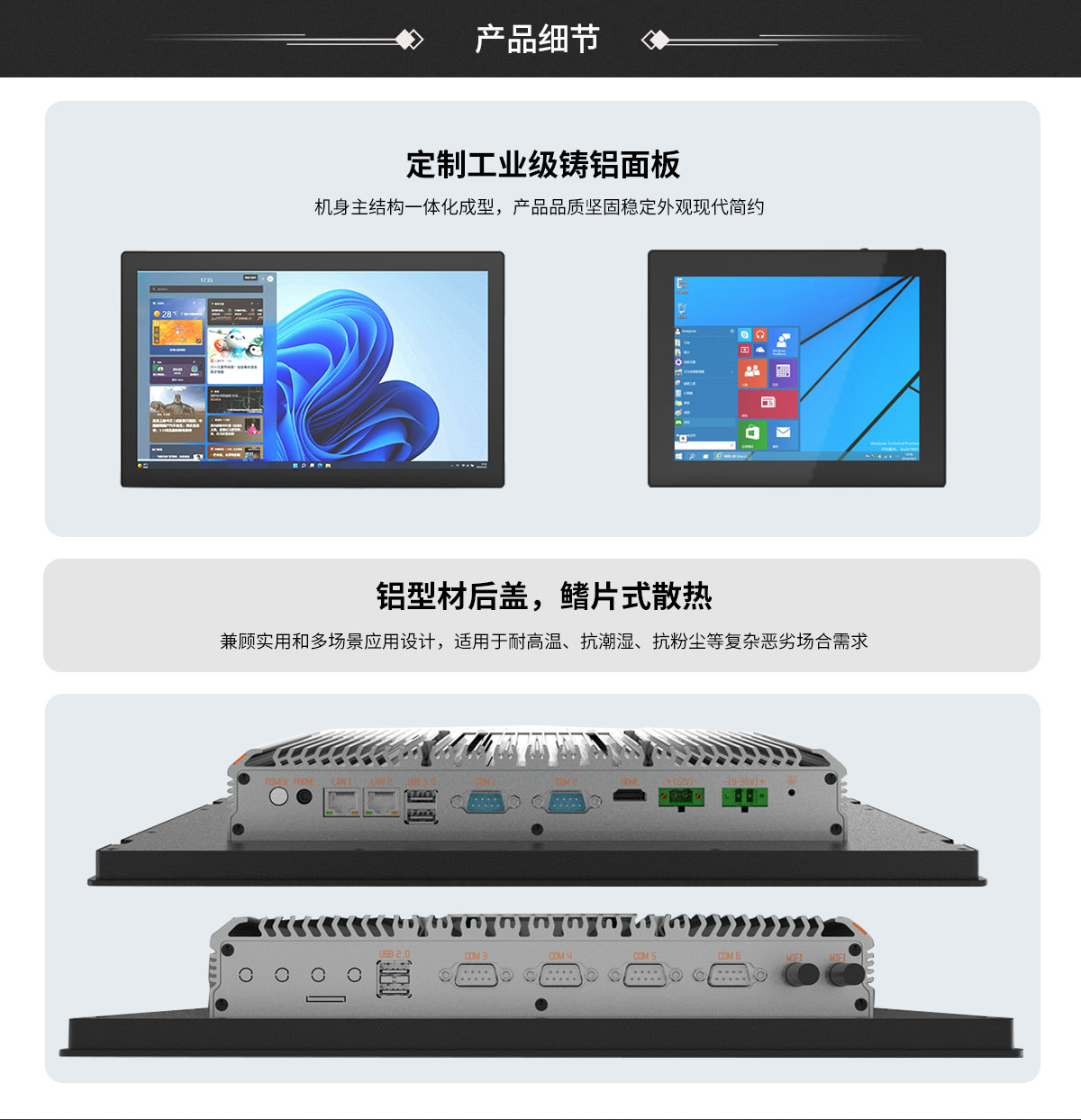

[Interfaces] Dual Gigabit LAN, HDMI port, multiple COM ports, USB ports, audio interface, support customized interface functions.

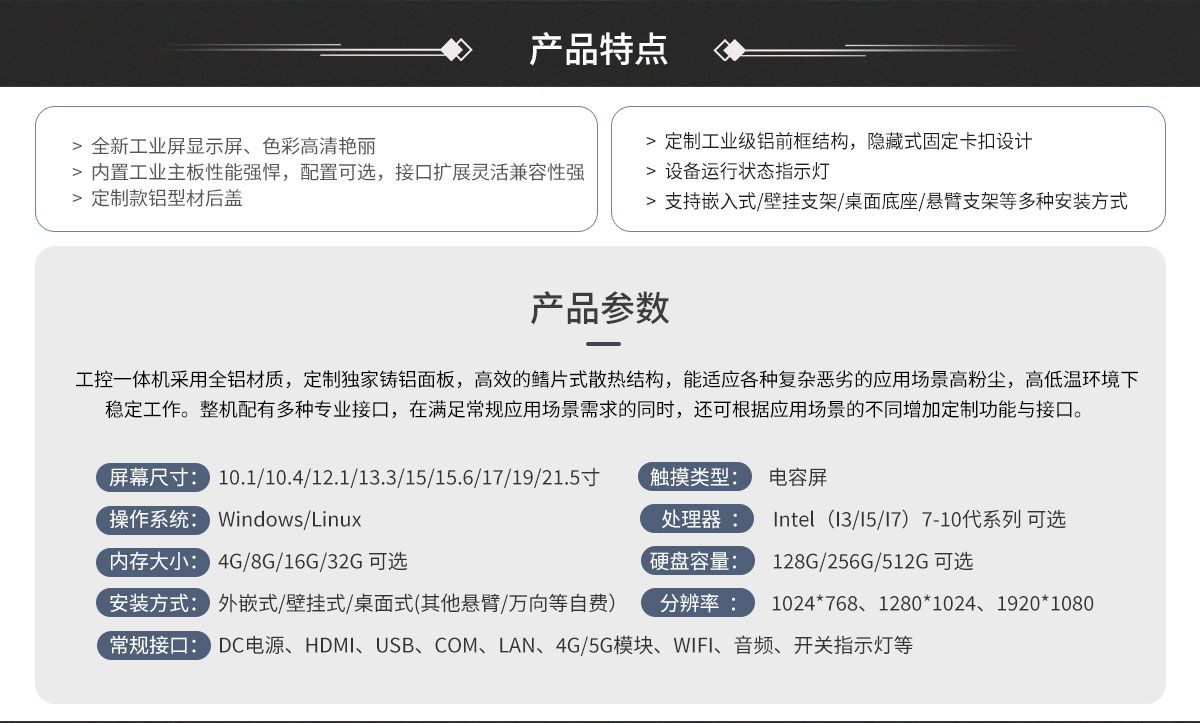

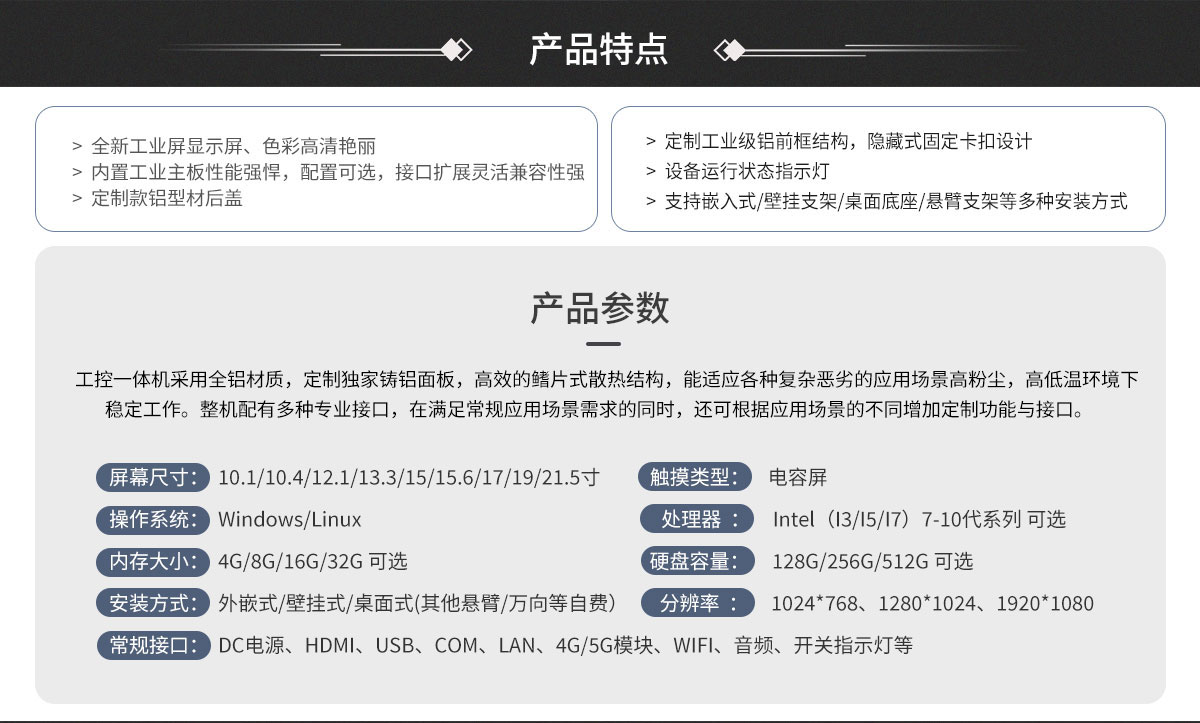

Basic Specifications
| Item | 7th Gen Config | 10th Gen Config | 12th Gen Config |
|---|---|---|---|
| Model | SK‑YPC‑A133 | SK‑YPC‑A133 | SK‑YPC‑A133 |
| Display | 13.3" | 13.3" | 13.3" |
| Touch Screen | 10‑point capacitive touch | 10‑point capacitive touch | 10‑point capacitive touch |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness | 300cd/m² | 300cd/m² | 300cd/m² |
| Processor | Intel® Kaby Lake 7th Gen (i3/i5/i7) | Intel® Comet Lake 10th Gen (i3/i5/i7) | Intel® Alder Lake 12th Gen (i3/i5/i7) |
| BIOS | AMI UEFI BIOS | AMI UEFI BIOS | AMI UEFI BIOS |
| Chipset | Intel® SOC | Intel® SOC | Intel® SOC |
| Graphics | Integrated Intel® HD Graphics 620 | Integrated 10th Gen Intel® UHD Graphics | Integrated Intel® Iris® Xe Graphics |
| Network | 1RTL8111H Gigabit Ethernet, supports WoL/PXE, optional 2LAN | 2*RTL8111H Gigabit Ethernet, supports WoL/PXE | 2*RTL8111H Gigabit Ethernet, supports WoL/PXE |
| Memory | 1*SO‑DIMM DDR4, Max 32GB | 2*SO‑DIMM DDR4, Max 64GB | 2*SO‑DIMM DDR4, Max 64GB |
| External I/O | HDMI1, USB3.02, USB2.02, COM2, Audio | HDMI1, USB3.02, COM*6, Audio | HDMI1, USB3.02, COM*6, Audio |
| Expansion Slot | Mini‑PCIE(for 4G), M.2 2230(WIFI/BT) | Mini‑PCIE(for 4G), M.2 2230(WIFI/BT) | Mini‑PCIE(for 4G), M.2 2230(WIFI/BT) |
| Storage | 2.5” SATA HDD bay | M.2 NVMe/SATA SSD + 2.5” SATA HDD | M.2 NVMe/SATA SSD + 2.5” SATA HDD |
| Power Supply | DC12V, 9‑36V wide voltage optional | DC12V, 9‑36V wide voltage optional | DC12V, 9‑36V wide voltage optional |
| Custom Functions | Support interface customization, OS customization, WIFI/BT/4G/Watchdog optional | Support interface customization, OS customization, WIFI/BT/4G/Watchdog optional | Support interface customization, OS customization, WIFI/BT/4G/Watchdog optional |
| Operating System | Windows7/10/11, Linux customizable | Windows10/11, Linux customizable | Windows10/11, Linux customizable |
| Cooling Mode | Fanless Passive Cooling | Fanless Passive Cooling | Fanless Passive Cooling |
| Structure Material | Aluminum Alloy Housing | Aluminum Alloy Housing | Aluminum Alloy Housing |
| Installation Method | Embedded / Wall‑mount / VESA mount | Embedded / Wall‑mount / VESA mount | Embedded / Wall‑mount / VESA mount |
| Working Temperature | -10℃ ~ 60℃ | -10℃ ~ 60℃ | -10℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 75℃ | -20℃ ~ 75℃ | -20℃ ~ 75℃ |
