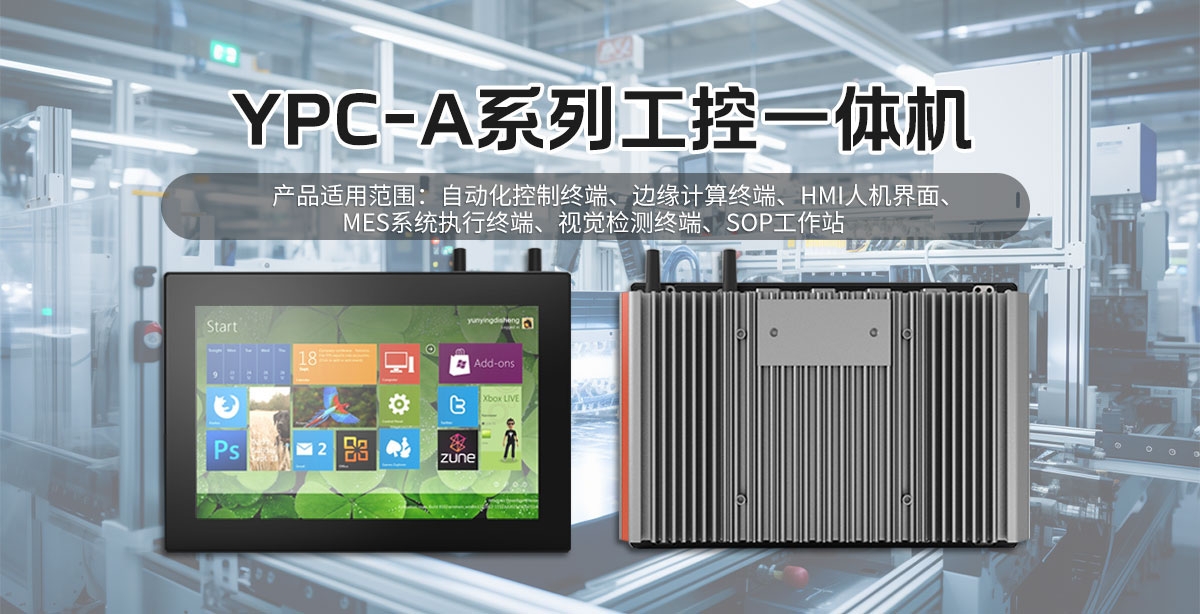

SK‑YPC‑A156 15.6 Inch Industrial Touch All‑in‑One PC, MES Production Line HMI Industrial Panel PC
SK-A
Fan‑less passive cooling,1920*1080 FHD,Multi‑gen Intel CPU optional,Dual LAN,Rich COM/USB interfaces,Support Windows/Linux
SK‑YPC‑A156 15.6‑inch fan‑less industrial touch all‑in‑one pc is designed for MES production‑line human‑machine interaction, with full‑HD display, abundant industrial interfaces, stable for long‑time factory running.
SK‑YPC‑A156 Industrial Panel PC Overview
Main Features:15.6‑inch FHD widescreen, MES production‑line HMI terminal, fan‑less passive heat dissipation, multi‑installation method, industrial capacitive touch screen
[Introduction] SK‑YPC‑A156 industrial touch all‑in‑one pc is developed for intelligent manufacturing MES workshop scenarios. 15.6‑inch full‑HD widescreen clearly displays production data, work orders and equipment status. High‑responsive capacitive touch realizes convenient on‑site human‑machine interaction. Rugged housing adapts to dust, vibration and electromagnetic interference in factory environment.
[System] Multiple 7th/10th/12th generation Intel Core i3/i5/i7 processors optional, meet different performance requirements from simple data collection to heavy MES software operation.
[Heat Dissipation] Adopts full fan‑less passive cooling design. No fan rotating parts, effectively avoid dust accumulation and mechanical failure, realize stable 7×24‑hours continuous operation.
[Environment] Industrial dust‑proof, shock‑proof and anti‑EMI performance, wide temperature working range, keep stable performance under complex workshop conditions.

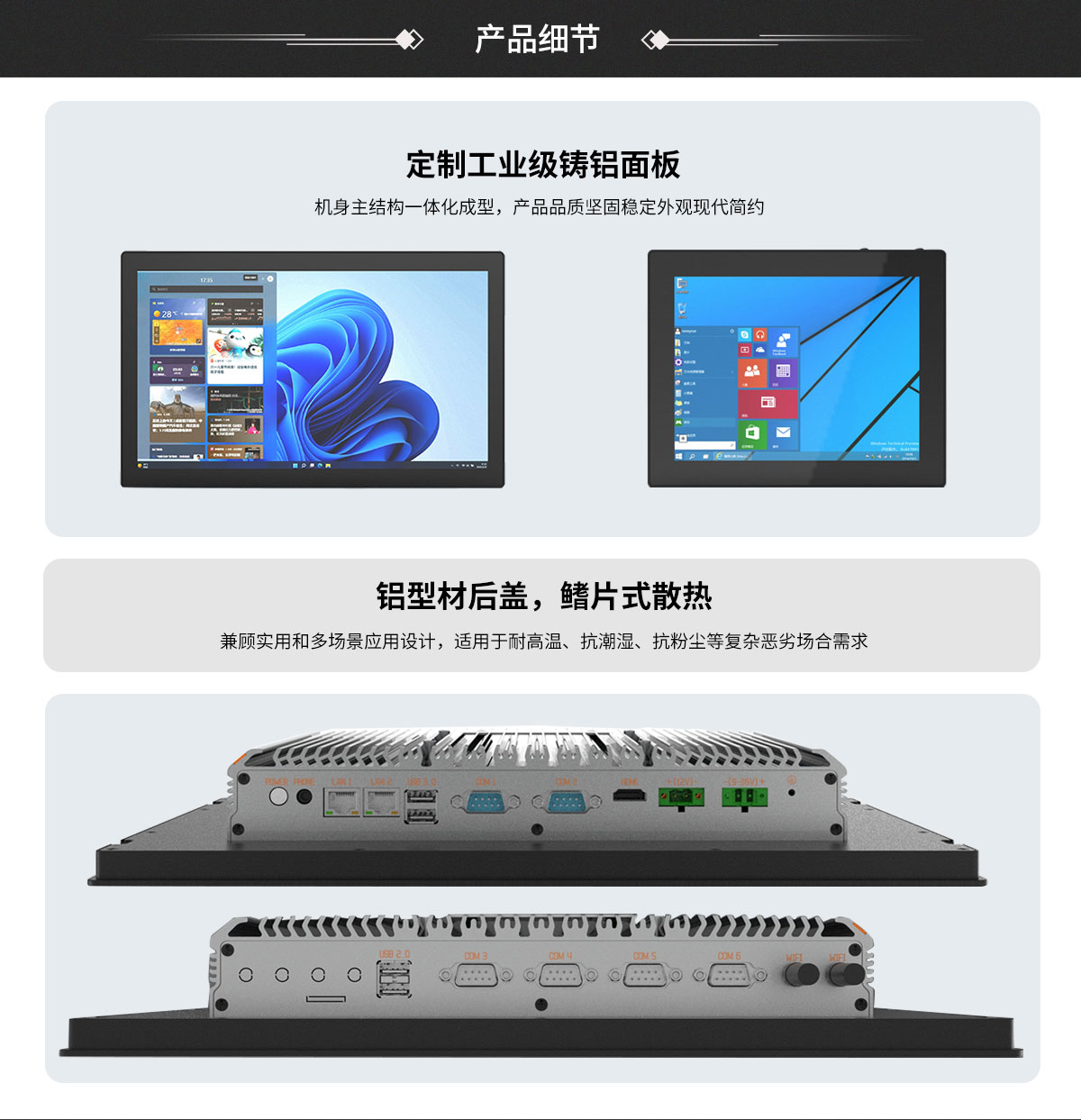

[Interfaces] Dual Gigabit Ethernet, switchable RS232/RS485 COM ports, USB, HDMI and audio ports. Expansion slots support WIFI, Bluetooth and 4G module for flexible network expansion.

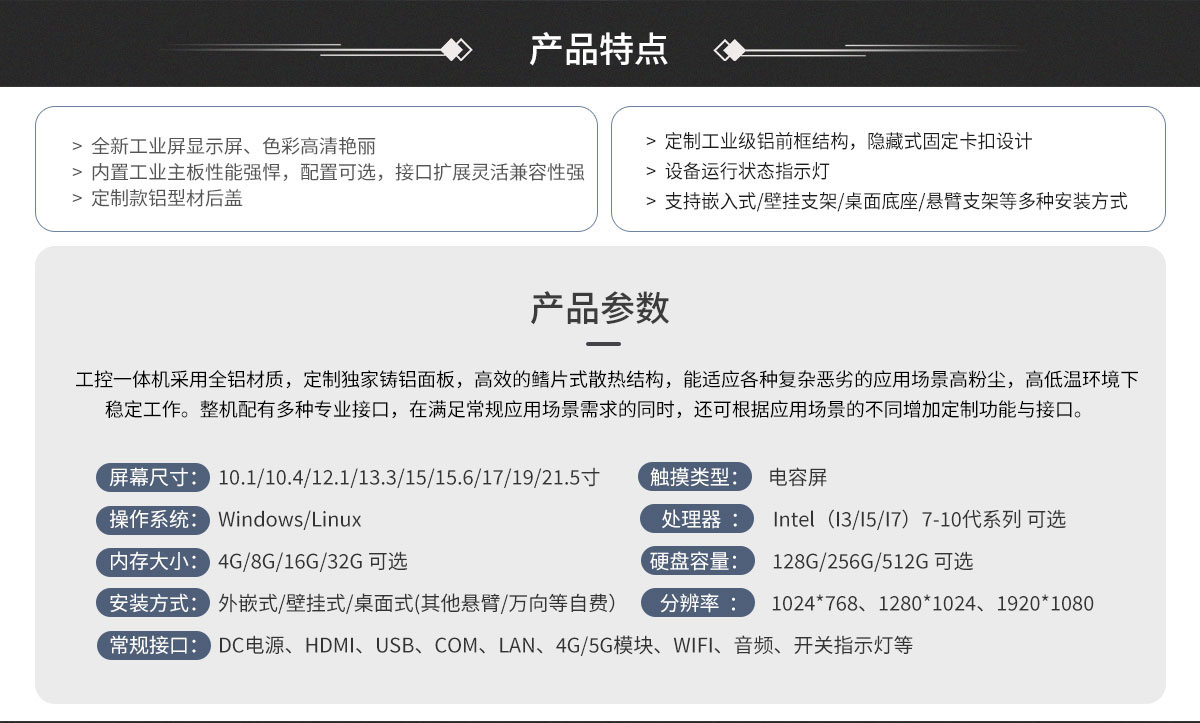

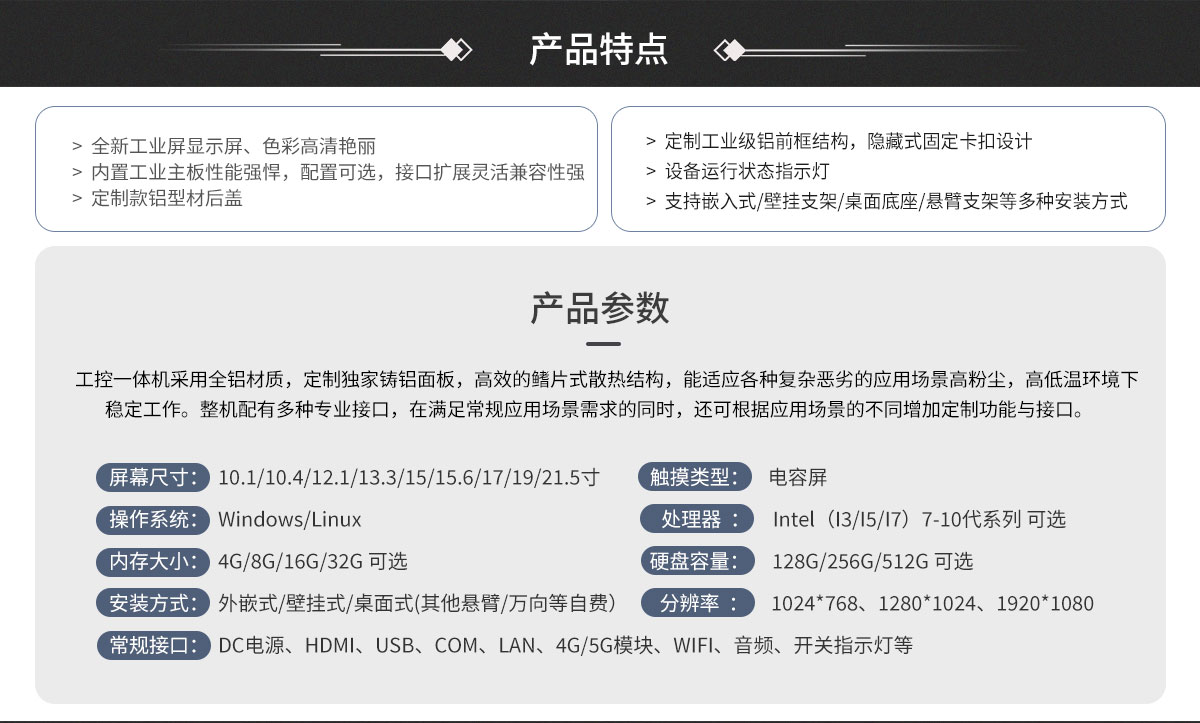

Basic Specifications
| Item | 7th Gen Config | 10th Gen Config | 12th Gen Config |
|---|---|---|---|
| Model | SK‑YPC‑A156 | SK‑YPC‑A156 | SK‑YPC‑A156 |
| Display | 15.6" FHD | 15.6" FHD | 15.6" FHD |
| Touch Screen | 10‑point capacitive touch | 10‑point capacitive touch | 10‑point capacitive touch |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness | 300cd/m² | 300cd/m² | 300cd/m² |
| Processor | Intel 7th Gen i3/i5/i7 | Intel 10th Gen i3/i5/i7 | Intel 12th Gen i3/i5/i7 |
| Network | 1*Gigabit LAN(optional dual LAN) | 2*Gigabit LAN | 2*Gigabit LAN |
| Memory | Max 32GB | Max 64GB | Max 64GB |
| Storage | 2.5"SATA HDD | M.2 2280 SSD+2.5"SATA | M.2 2280 SSD+2.5"SATA |
| Power | DC12V, optional 9‑36V wide voltage | DC12V, optional 9‑36V wide voltage | DC12V, optional 9‑36V wide voltage |
| OS | Windows7/10/11,Linux | Windows10/11,Linux | Windows10/11,Linux |
| Mounting | Panel / Wall / VESA mount | Panel / Wall / VESA mount | Panel / Wall / VESA mount |
| Working Temp | ‑10℃~60℃ | ‑10℃~60℃ | ‑10℃~60℃ |
| Cooling | Fanless | Fanless | Fanless |
| Application | MES station terminal,workshop data acquisition,automation production monitoring | MES station terminal,workshop data acquisition,automation production monitoring | MES station terminal,workshop data acquisition,automation production monitoring |
