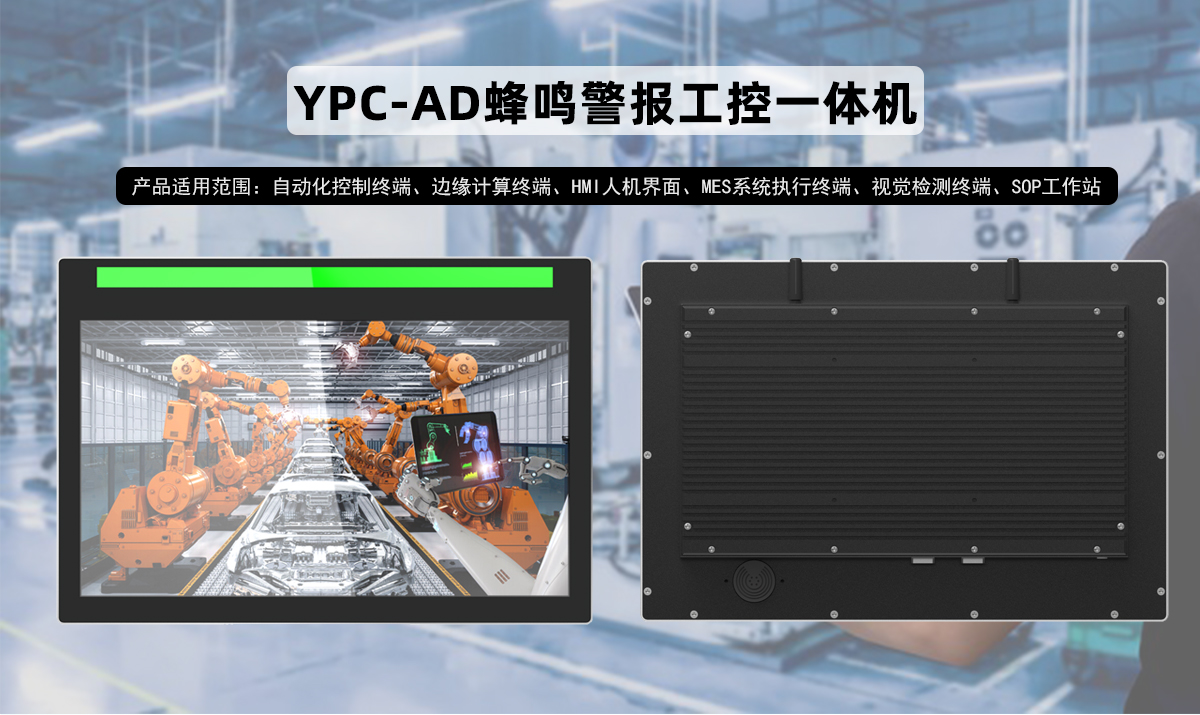

19 Inch Long‑Distance View YPC‑AD Industrial All‑in‑One PC Integrated Tri‑color Andon Light & Buzzer Alarm
SK-AD
Fanless,All‑aluminum,Tri‑color Andon Light,Buzzer Alarm,Android / Windows Dual System
YPC‑AD‑190 19‑inch industrial all‑in‑one pc with long‑distance readable display, built‑in tri‑color Andon light and buzzer alarm, fanless all‑aluminum structure, for production line MES abnormal warning workstation.
YPC‑AD Series Overview
Pre‑order Features: Long‑distance view screen, integrated tri‑color Andon light, built‑in buzzer alarm, all‑aluminum housing, workshop‑oriented design
- Fanless passive heat dissipation, no fan maintenance
- Support Android and Windows operating system ‑ Built‑in tri‑color Andon light and buzzer alarm for production site abnormal warning ‑ Long‑distance readable display for workshop on‑site viewing ‑ Fully enclosed dust‑proof front panel, adapt to factory harsh environment ‑ Reserved rich industrial interfaces: Gigabit LAN, RS232/RS485 phoenix terminal, Andon signal output port ‑ Support embedded installation and wall‑mount installation for MES workstation cabinet
YPC‑AD‑190 Basic Specifications
| Item | Parameter |
|---|---|
| Model | YPC‑AD‑190 |
| Display | 19 inch |
| Touch Screen | Industrial capacitive touch |
| Resolution | 1280*1024 |
| Brightness | 350cd/m² |
| Housing | All‑aluminum alloy |
| Special Function | Integrated Tri‑color Andon Light + Buzzer Alarm |
| Cooling | Fanless fully‑enclosed passive cooling |
| OS | Android / Windows optional |
| Network | Gigabit Ethernet |
| Serial Port | RS232 / RS485 Phoenix terminal |
| Installation | Embedded, Wall‑mount |
| Working Temperature | Industrial wide temperature |
| Application | MES workstation,Andon abnormal warning,production line HMI terminal |
Senke Electronic is a manufacture of industrial panel pc, industrial box pc, rugged tablet, kiosk payment and digital display advertising.
