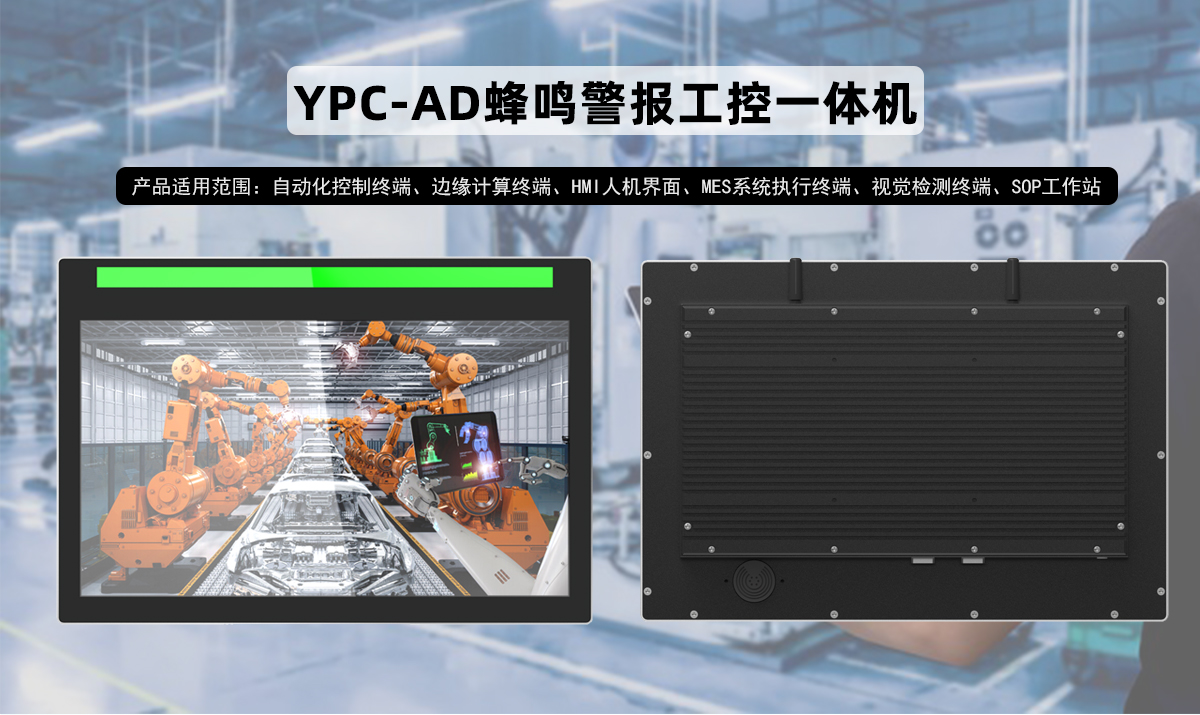

YPC-AD 23.6 Inch Andon Warning Buzzer Industrial Panel PC

Product Overview

YPC-AD 23.6-inch industrial touch panel PC is a large-screen centralized visualization terminal customized for intelligent manufacturing workshops. It integrates built-in Andon warning buzzer and three-color signal light, realizing full-line production data centralized display, station abnormal real-time alarm, production progress tracking and equipment fault reminding. Perfectly matched with MES Andon management system, widely used in auto assembly, electronic processing, new energy production and automated assembly workshops.

Core Product Highlights

1. 23.6-inch ultra-wide industrial full HD screen, 1920*1080 resolution, ultra-wide viewing angle, support multi-station data split screen display, clear reading in large workshop from long distance.
2. Standard built-in high decibel Andon buzzer + red/yellow/green tri-color warning light. Trigger sound and light alarm when material shortage, equipment breakdown, quality failure or station call occurs, help managers rapidly troubleshoot production line abnormalities and cut downtime loss.
3. Integrated die-cast full aluminum fanless passive cooling structure, fully enclosed dustproof design, no fan wear and clogging, support stable 7×24 hours uninterrupted workshop operation, zero daily maintenance.
4. Front panel reaches IP65 dustproof and splash-proof protection grade, anti-oil mist, anti-dust, anti-water splash, strong anti-vibration and anti-electromagnetic interference, adapt harsh factory environment.
5. Industrial capacitive multi-touch screen, support light glove touch operation, sensitive and long service life for frequent daily tapping.
6. Complete industrial communication expansion ports: Gigabit Ethernet, customizable multi-group RS232/RS485 serial ports, USB, audio and signal expansion interfaces, seamless connection with PLC, production sensors and Andon controllers.
7. Dual industrial operating systems optional: Windows Industrial System / Android Industrial System. Support full OEM customization: custom boot logo, adjustable screen brightness, modify alarm linkage program and software interface layout.
8. Multiple installation ways: wall-mounted, cabinet embedded, vertical stand installation, easy layout for workshop central control station.

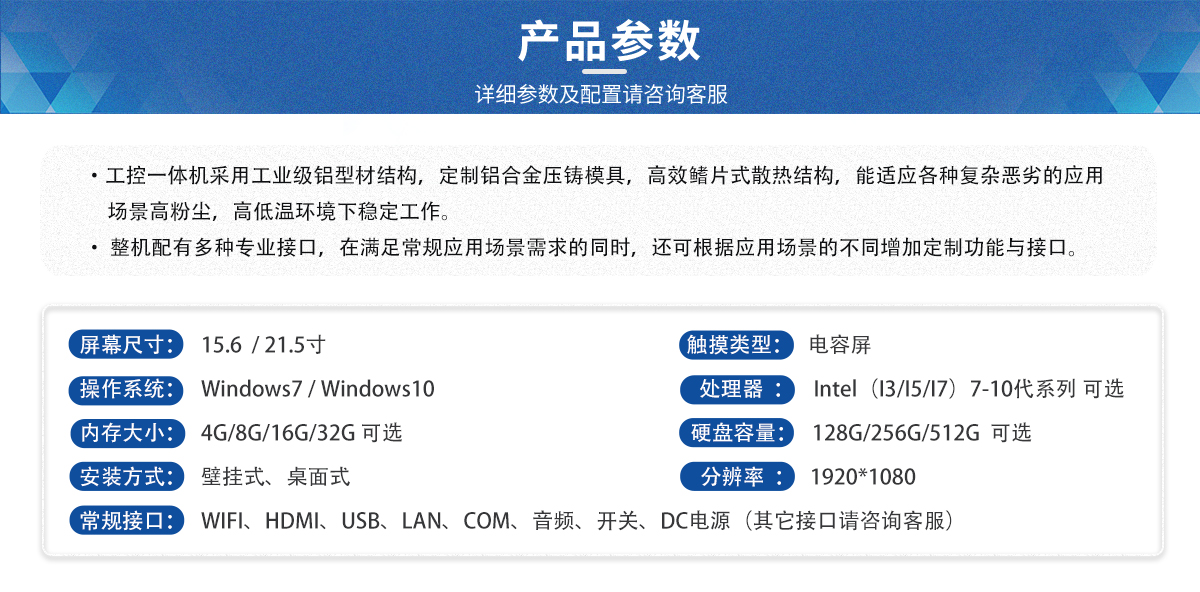

Detailed Technical Specifications

Main Application Scenarios

Smart factory centralized Andon monitoring station, automobile assembly workshop production visualization screen, consumer electronics production line MES data terminal, new energy battery workshop abnormal alarm panel, logistics sorting station real-time scheduling monitor, multi-workshop unified production management host.

Customization Service

Senke provides full OEM & ODM personalized modification for all YPC-AD series Andon industrial panels. Clients can adjust buzzer volume, alarm light trigger logic, serial port quantity and hardware parameters according to their own production line Andon system requirements. Global automation integrators, factory equipment suppliers and manufacturing enterprises are welcome to contact us for samples, technical solutions and bulk order quotations.
