12.1 Inch Fanless Rack‑Mount Industrial All‑in‑One PC for Medium‑Small Equipment Cabinet
SK-JD
Rack‑mount installation,Fanless cooling,Multi‑gen Intel CPU optional,Rich industrial I/O
12.1‑inch fanless rack‑mount industrial all‑in‑one pc YPC‑121RK,rack‑mount design for medium‑small equipment cabinet,rich industrial I/O,wide temperature fanless operation for factory HMI terminal.

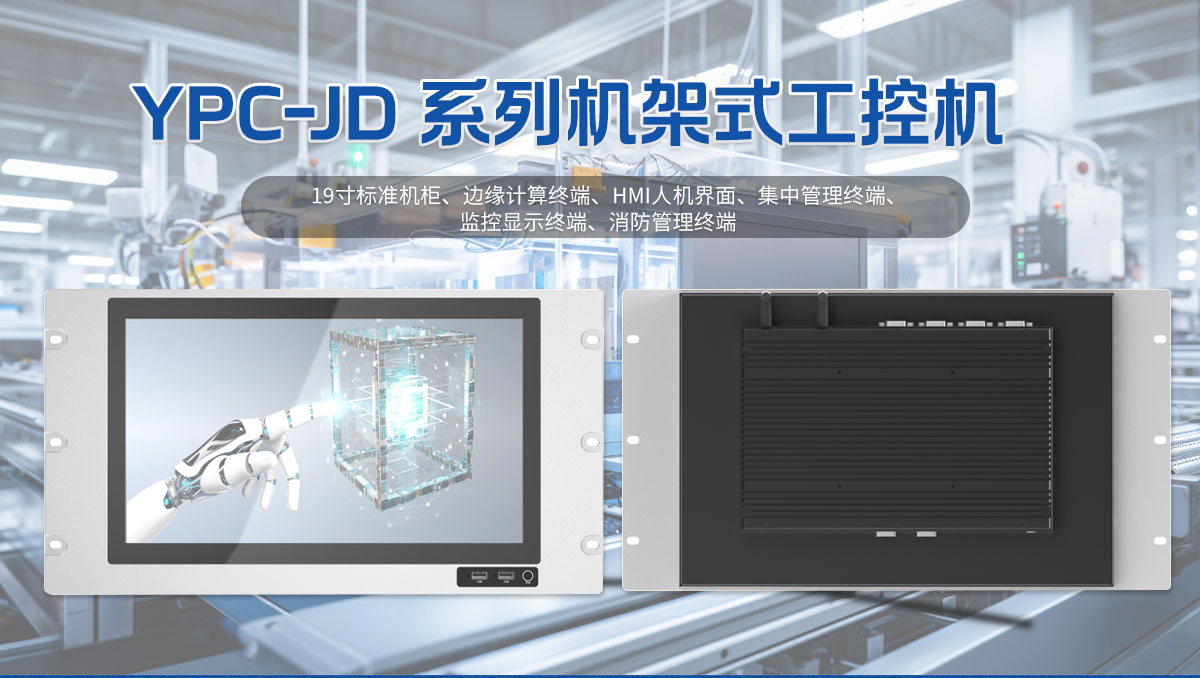

12.1 Inch Fanless Rack‑Mount Industrial All‑in‑One PC
The YPC‑121JD is a 12.1‑inch fanless rack‑mount industrial all‑in‑one pc,designed for medium‑small equipment cabinet supporting. Adopt passive heat dissipation without fan,avoid dust accumulation and reduce maintenance work. Standard rack‑mount structure,easy to install inside industrial cabinet,suitable for on‑site HMI operation,parameter setting and production data display.
Multiple Intel 7th/10th/12th Gen i3/i5/i7 processors are optional, supporting long‑term stable continuous operation in industrial workshops. It reserves abundant industrial interfaces including dual gigabit ethernet, switchable RS232/RS485 COM ports, GPIO, USB and audio ports. Support WIFI, BT, 4G module expansion, convenient to connect PLC, sensors and automation devices.
Working temperature ranges from ‑20℃ to 60℃, anti‑vibration and anti‑interference performance. DC12V power input with optional 9‑36V wide‑voltage power supply, fits complex industrial power environment. Widely applied in mechanical equipment, new‑energy devices, automation production line cabinet terminals, intelligent detection equipment.
Basic Specifications
表格
| Item | 7th Gen Config | 10th Gen Config | 12th Gen Config |
|---|---|---|---|
| Model | YPC‑121JD | YPC‑121JD | YPC‑121JD |
| Display | 12.1" TFT‑LCD | 12.1" TFT‑LCD | 12.1" TFT‑LCD |
| Touch Screen | Capacitive / Resistive touch optional | Capacitive / Resistive touch optional | Capacitive / Resistive touch optional |
| Resolution | 1024*768 | 1024*768 | 1024*768 |
| Brightness | 300cd/m² | 300cd/m² | 300cd/m² |
| Viewing Angle | 85°/85°/85°/85°(L/R/U/D) | 85°/85°/85°/85°(L/R/U/D) | 85°/85°/85°/85°(L/R/U/D) |
| Processor | Intel® Kaby Lake 7th Gen (i3/i5/i7) | Intel® Comet Lake 10th Gen (i3/i5/i7) | Intel® Alder Lake 12th Gen (i3/i5/i7) |
| BIOS | AMI UEFI BIOS | AMI UEFI BIOS | AMI UEFI BIOS |
| Chipset | Intel® SOC | Intel® SOC | Intel® SOC |
| Graphics | Integrated Intel® HD Graphics 620 | Integrated 10th Gen Intel® UHD Graphics | Integrated Intel® Iris® Xe Graphics |
| Network | 1RTL8111H Gigabit Ethernet,supports WoL/PXE, optional 2LAN | 2*RTL8111H Gigabit Ethernet,supports WoL/PXE | 2*RTL8111H Gigabit Ethernet,supports WoL/PXE |
| HDMI | 1*HDMI | 1*HDMI | 1*HDMI |

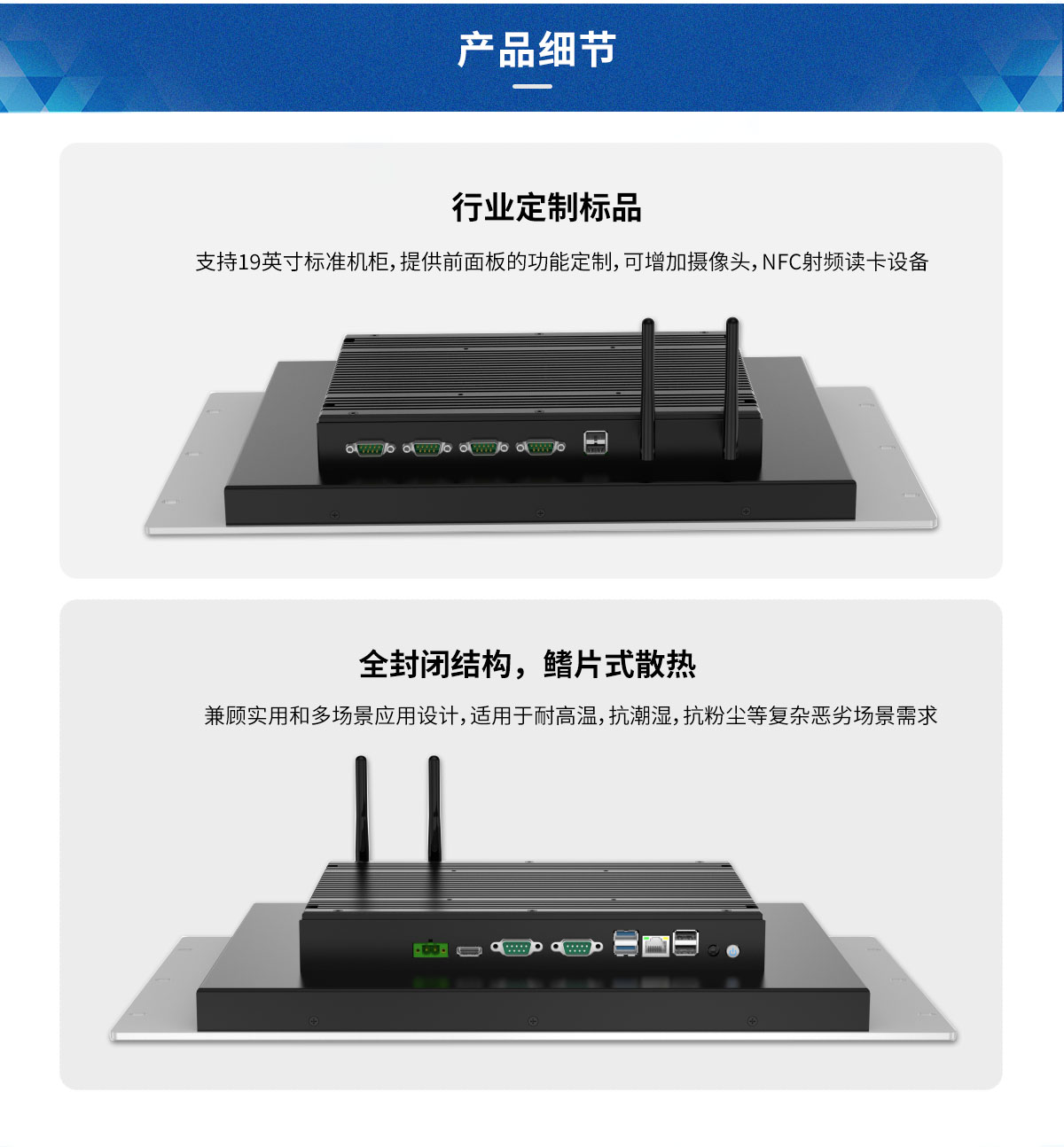

| External I/O | 2COM (RS232/RS485 switchable);2USB3.0/2USB2.0;1Audio combo (audio out/mic in);1Illuminated power button; 4USB2.0 header | 2COM (RS232/RS485 switchable);2USB3.0; 2LAN; 1Audio combo (audio out/mic in);1Illuminated power button;4USB2.0 header | 2COM (RS232/RS485 switchable);2USB3.0; 2LAN; 1Audio combo (audio out/mic in);1Illuminated power button;4USB2.0 header |
| Internal I/O | 4COM RS232 header;1GPIO header (8‑bit);1*SATA connector | 4COM RS232 header;1GPIO header (8‑bit);1*SATA connector | 4COM RS232 header;1GPIO header (8‑bit);1*SATA connector |
| Expansion Slots | 1MINI‑PCIE (4G module);1M.2 2230 (WIFI/BT module) | 1MINI‑PCIE (4G module);1M.2 2230 (WIFI/BT module) | 1MINI‑PCIE (4G module);1M.2 2230 (WIFI/BT module) |
| Storage | 1*2.5" SATA HDD bay(7mm thickness) | 1M.2 2280 SSD(SATA/NVMe auto‑adaptive);12.5" SATA HDD bay(7mm thickness) | 1M.2 2280 SSD(SATA/NVMe auto‑adaptive);12.5" SATA HDD bay(7mm thickness) |
| Power | DC12V power supply (optional 9‑36V wide voltage input) | DC12V power supply (optional 9‑36V wide voltage input) | DC12V power supply (optional 9‑36V wide voltage input) |
| Functions | WIFI/BT/4G/Watchdog/Front IC card reader/QR code scanner /Front 2*USB2.0/Front power button | WIFI/BT/4G/Watchdog/Front IC card reader/QR code scanner /Front 2*USB2.0/Front power button | WIFI/BT/4G/Watchdog/Front IC card reader/QR code scanner /Front 2*USB2.0/Front power button |
| Operating System | Windows 7/10/11/Linux | Windows 10/11/Linux | Windows 10/11/Linux |
| Dimensions | 32026562mm | 32026562mm | 32026562mm |
| Mounting | Rack‑mount / Wall mount / Desktop | Rack‑mount / Wall mount / Desktop | Rack‑mount / Wall mount / Desktop |
| Operating Env. | ‑20℃~60℃,10%‑90% non‑condensing | ‑20℃~60℃,10%‑90% non‑condensing | ‑20℃~60℃,10%‑90% non‑condensing |
| Storage Env. | ‑30℃~70℃,5%‑95% non‑condensing | ‑30℃~70℃,5%‑95% non‑condensing | ‑30℃~70℃,5%‑95% non‑condensing |
| Cooling | Fanless | Fanless | Fanless |
| Color | Black | Black | Black |
| Chassis Material | Aluminum alloy panel,aluminum extrusion rear cover | Aluminum alloy panel,aluminum extrusion rear cover | Aluminum alloy panel,aluminum extrusion rear cover |
| Speaker | 2*8Ω 2W | 2*8Ω 2W | 2*8Ω 2W |
