Product Model: YPC-F121

Pre-order Features: 12.1" 4:3 industrial touch panel pc, front I/O panel with front USB, embedded mounting design, easy field wiring & plugging, industrial HMI terminal, long-time stable operation

[Introduction]

YPC-F121 is a 12.1-inch 4:3 embedded industrial panel PC featured with front I/O layout. The USB port is placed on the front panel, which greatly simplifies temporary data export and U-disk operation on site, no need to disassemble the cabinet. It adopts industrial LCD display and optional capacitive or resistive touch, perfectly matching machine HMI, workshop equipment control and on-site debugging scenarios. Compact panel structure supports embedded installation into control cabinet, saving cabinet space. Built-in hardware watchdog and auto power-on function to guarantee uninterrupted running in industrial environment.

[System]

Optional Intel 7th /10th /12th Gen Core i3/i5/i7 & Celeron processors. DDR4 RAM, SSD storage for selection, flexible configuration for different industrial software requirements.

[Cooling]

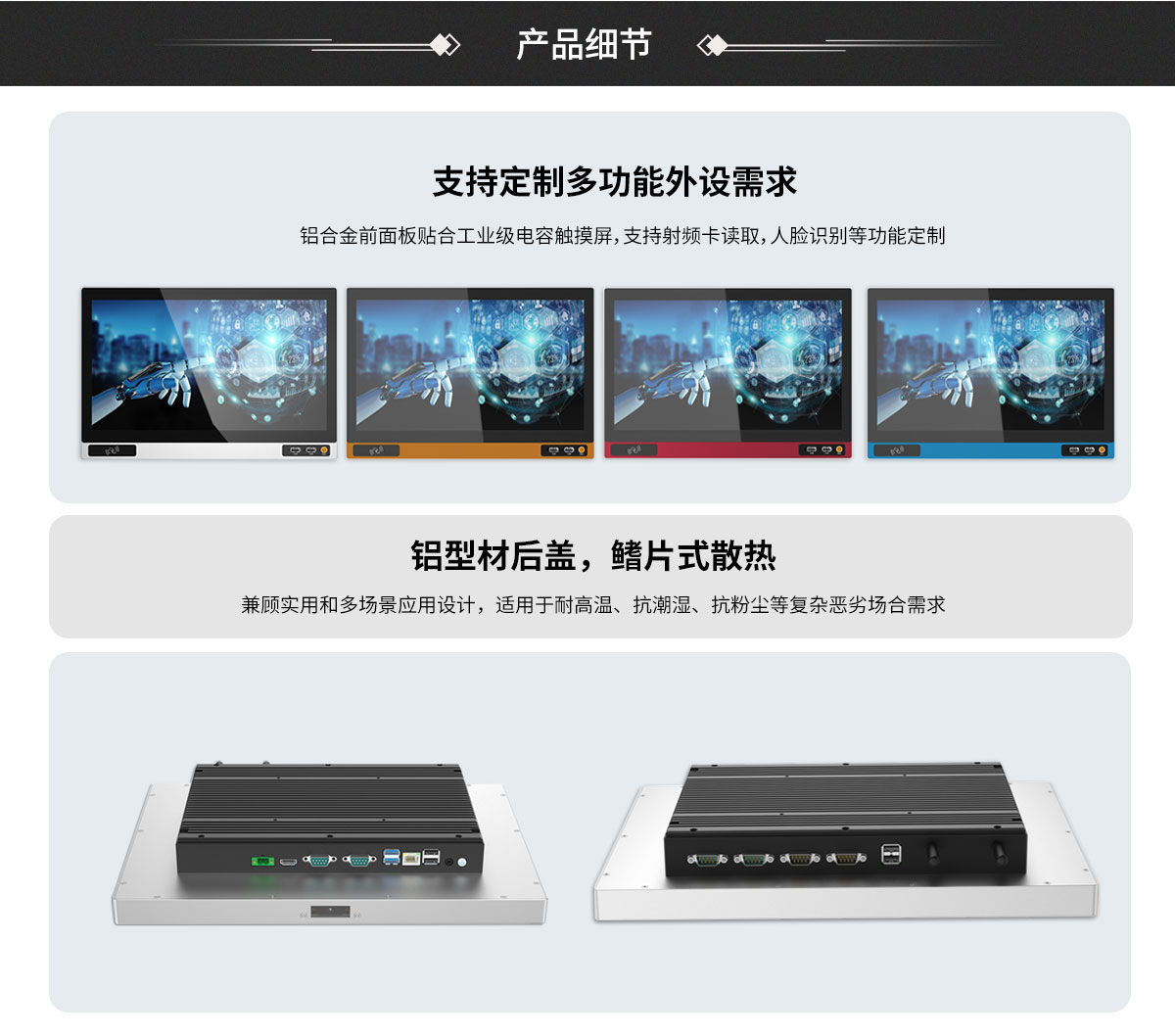

Fanless passive heat dissipation, fully enclosed aluminum housing, no fan failure risk, dust-proof for long-term operation.

[Environment]

Wide temperature working range, supports normal operation under workshop temperature fluctuation. Front panel optional IP65 waterproof & dustproof, adapt to harsh factory workshop.

[Interfaces]

Front: USB 2.0 port; Rear: Multiple COM, LAN, HDMI, Audio, USB, DC power interface. Rich I/O for connecting sensors, PLC and peripheral industrial devices.

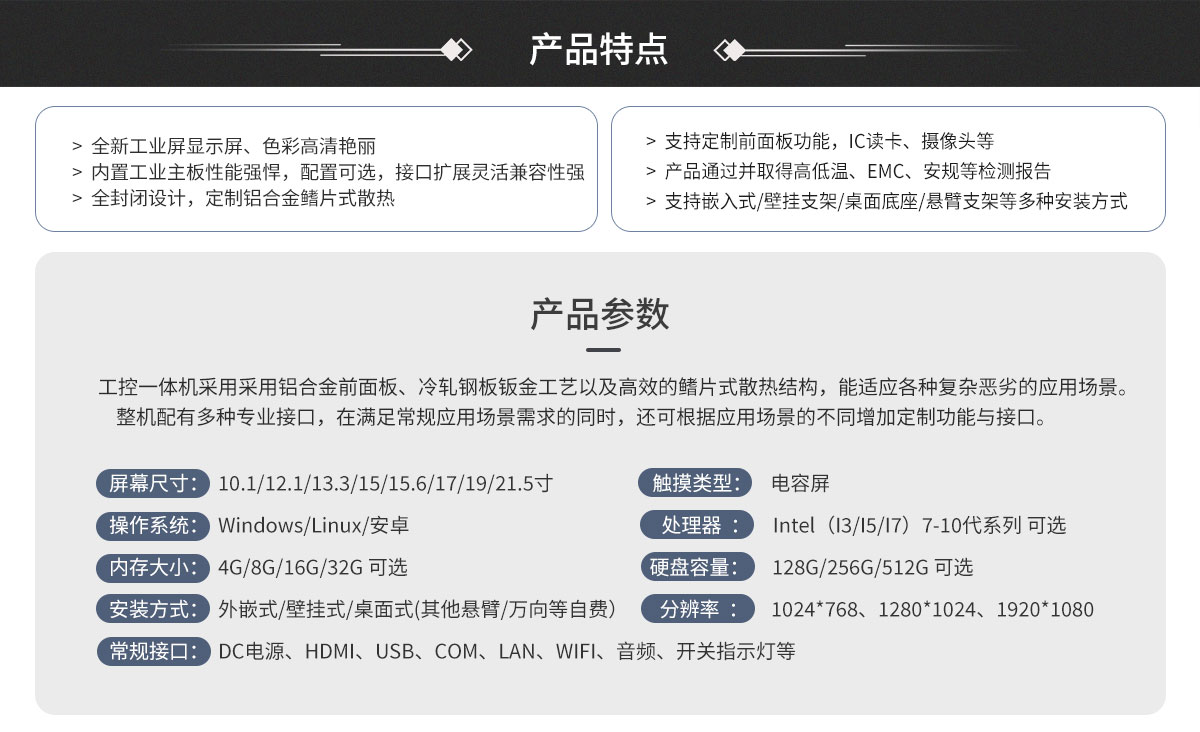

### Basic Specifications 表格 | Item | Specifications | | --- | --- | | Display | 12.1" TFT-LCD, 4:3, 1024×768 | | Touch Screen | Capacitive / Resistive touch optional | | Front Interface | Front USB for convenient onsite operation | | Mounting Way | Embedded panel mount | | Chassis | Aluminum alloy fanless enclosure | | System | Windows / Android / Linux optional | | Application | Machine HMI, equipment control, factory on-site debugging | This industrial panel PC is widely applied in machine tool control, production station HMI, cabinet equipment monitoring, industrial on-site data collection and debugging terminals.
