Pre‑order Features: 15‑inch 4:3 square industrial screen, convenient front‑side USB and serial‑port access, embedded cabinet installation, all‑aluminum heavy‑duty chassis, fanless passive cooling, suitable for on‑site equipment debugging, 7×24‑hour continuous factory‑site running

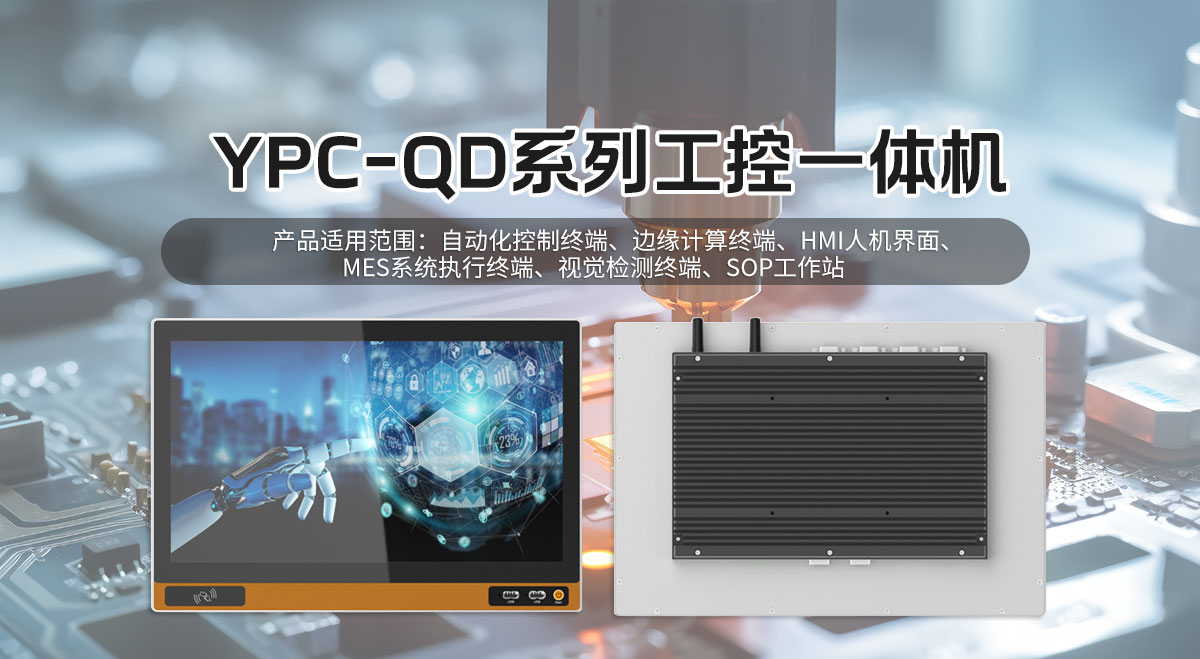

[Introduction] YPC‑QD‑150 is a practical embedded industrial touch all‑in‑one PC specially developed for on‑site industrial debugging and HMI control. Adopting classic 15‑inch 4:3 XGA(1024×768) industrial LCD display, it keeps good compatibility with legacy industrial software. The highlight of this model is the front‑panel reserved USB and COM serial ports. Operators can directly plug in U‑disk, peripheral debug tools without opening the control cabinet, greatly improving daily field maintenance efficiency. The solid aluminum alloy housing supports embedded panel mounting inside equipment cabinets. Hardware watchdog and auto‑power‑on after power failure function ensure reliable unattended running for machine‑tool, production‑line, workshop automation control scenarios.

[System] It supports optional Intel 7th /10th /12th Gen Core i3/i5/i7 processors. DDR4 RAM and SSD storage are configurable according to project demands. It can run Windows 10, Windows11 or Linux operating system, convenient for secondary development of HMI, data acquisition and automation control programs.

[Heat Dissipation] Fanless fully‑sealed passive thermal solution via thick aluminum heat‑conducting chassis. No rotating fan avoids dust accumulation and fan failure trouble, lowering later maintenance work in dusty factory environment.

[Environmental Performance] Stable working temperature range: ‑10℃ ~ +60℃. Front‑panel meets basic dust‑resistant requirement; it can withstand continuous vibration on workshop production sites. DC wide‑voltage power input 12‑24V adapts complex industrial power supply condition.

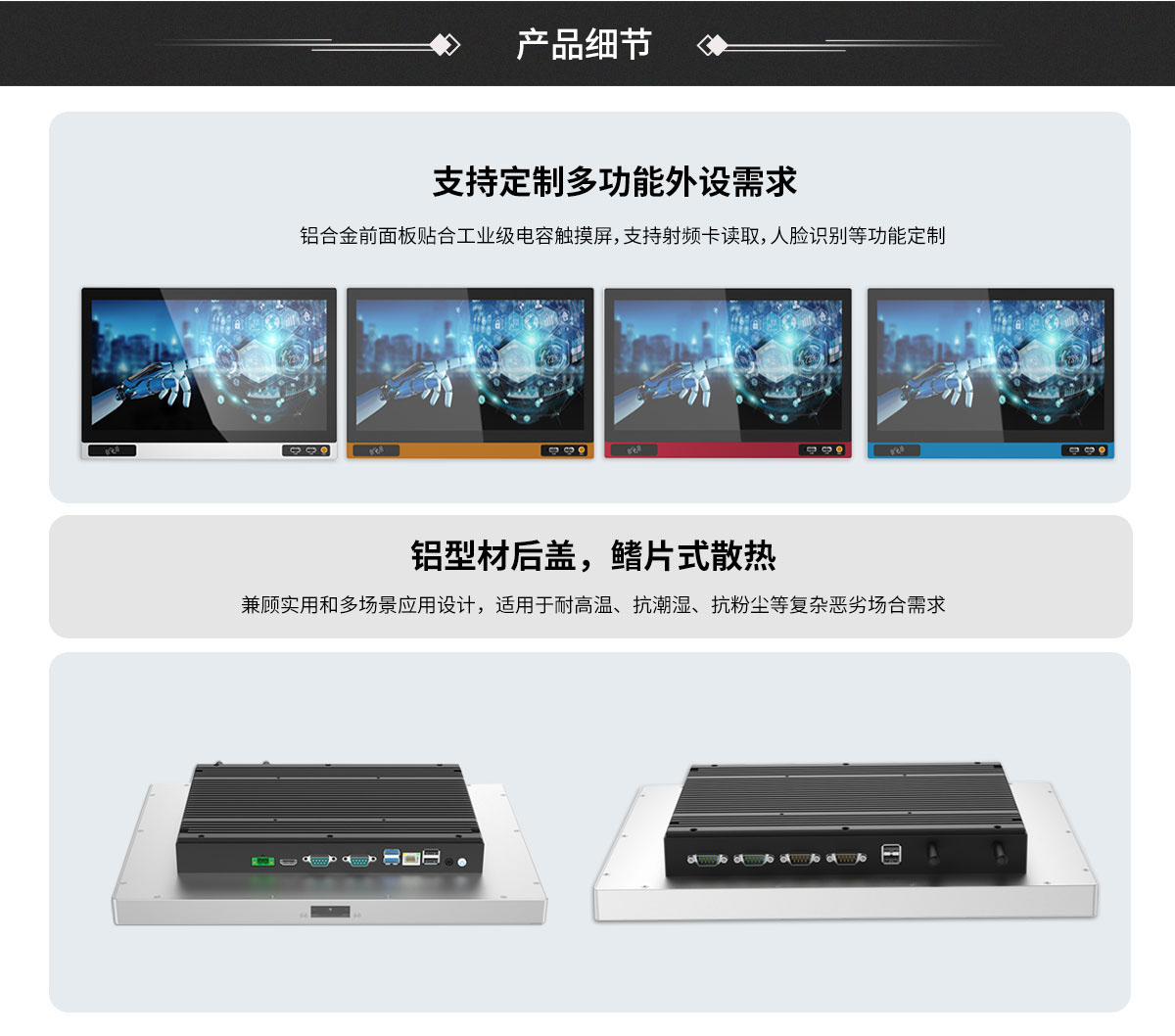

[Interfaces] Besides convenient front‑side USB & COM for quick field operation, the rear side reserves complete expansion I/O: multiple LAN, RS232/RS485 serial ports, USB3.0, HDMI, audio, DC power terminal. Rich interfaces help users connect PLC, sensors and other peripheral industrial devices.

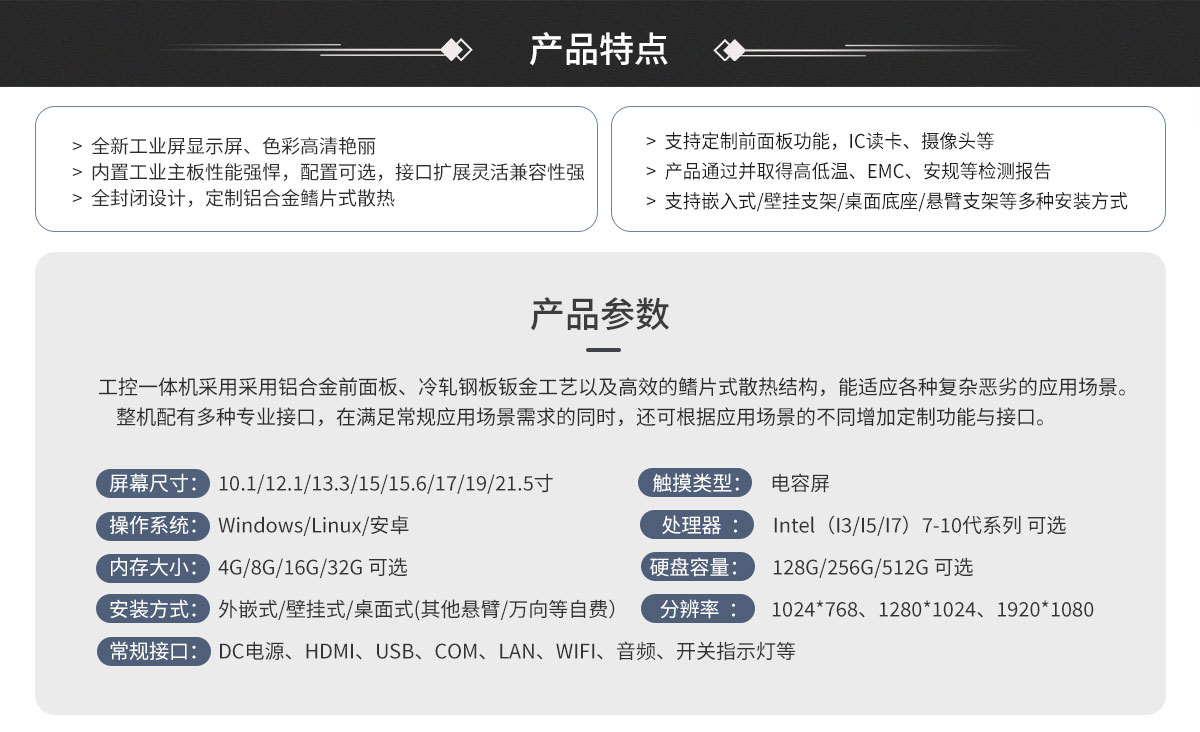

Basic Specifications
