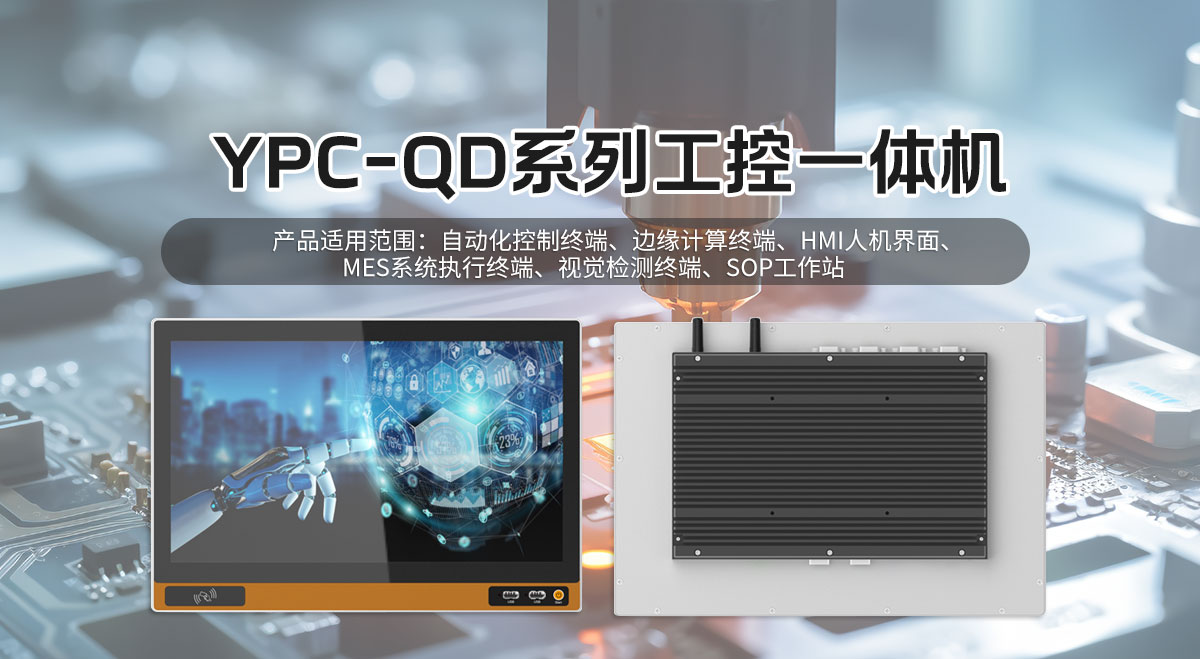

Product Model: YPC-QD-185

Pre-order Features: 18.5-inch wide industrial touch screen, 1366×768 resolution, front USB interface design, wall-mount installation, fanless all-aluminum chassis, embedded industrial control panel PC, convenient on-site equipment debugging, 7×24 hours stable operation

[Introduction]

YPC-QD-185 is a cost-effective 18.5-inch wide-screen industrial all-in-one panel PC tailored for factory workshop automation scenarios. Adopting 16:9 wide screen with 1366×768 resolution, it presents clear and delicate display effect for industrial monitoring, data viewing and equipment operation. The core front I/O design reserves front USB port, allowing operators to complete U-disk data transmission and device debugging without disassembling the cabinet, greatly improving on-site maintenance efficiency.

Built with fully sealed all-aluminum alloy fanless housing, this wall-mount industrial tablet features dust-proof and anti-vibration performance, adapting to long-term stable operation in dusty and vibration workshop environments. It supports wide voltage power supply, hardware watchdog and automatic power-on after power failure, ensuring unattended and reliable operation for industrial HMI control, production line monitoring and workshop equipment debugging terminals.

[System]

Configured with low-power industrial processor, optional Intel Celeron / 7th/10th/12th Gen Core i3/i5/i7 CPU. DDR4 memory and SSD storage are customizable to match different industrial software operating requirements. It supports Windows 10, Windows 11 and Linux systems, with excellent compatibility for industrial configuration software, data acquisition and automation control programs.

[Heat Dissipation]

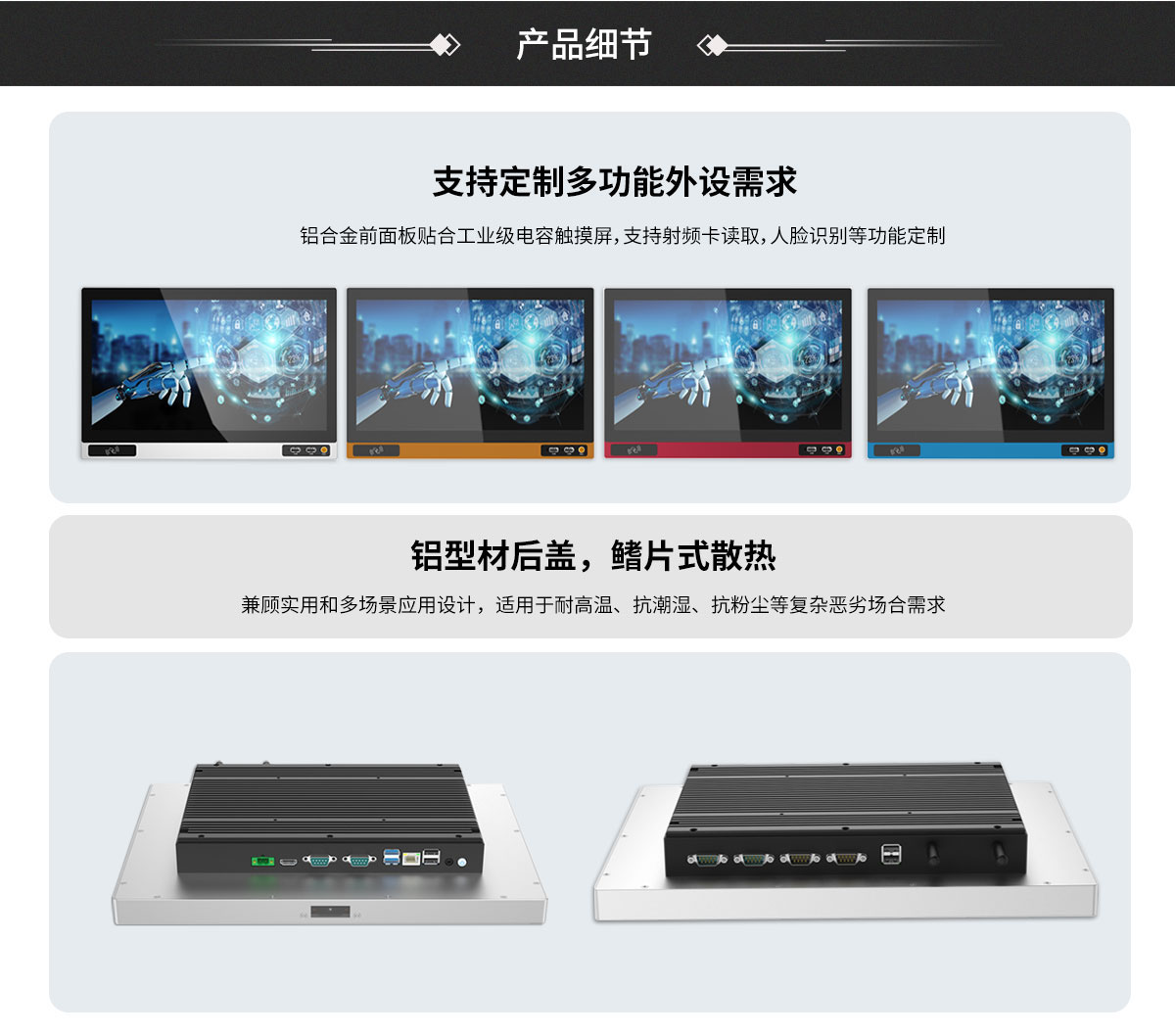

Adopts passive fanless heat dissipation structure with thickened aluminum heat conduction chassis. No fan design eliminates dust accumulation and fan failure risks, realizing maintenance-free long-term operation and perfectly adapting to harsh industrial workshop environments.

[Environment]

Industrial-grade wide temperature design, stable working temperature range from -10℃ to 60℃. The front panel has good dust-proof and splash-proof capability, effectively resisting workshop dust, vibration and slight impact. It supports 7×24-hour continuous non-stop industrial operation.

[Interfaces]

Unique front USB interface for quick on-site debugging and data exchange. Rear complete expansion interfaces include multiple Gigabit LAN ports, RS232/RS485 serial ports, USB3.0, HDMI and DC wide voltage power terminal. Rich I/O ports facilitate connection with PLC, sensors, scanners and other industrial peripheral equipment.

Basic Specifications
