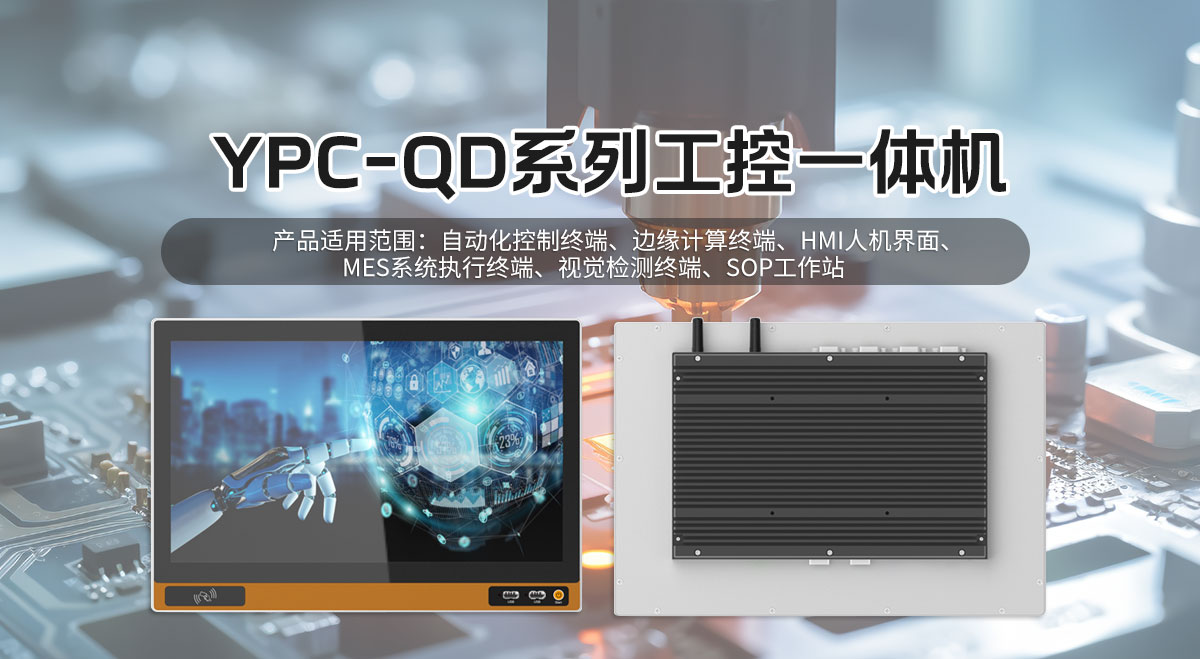

Product Model: YPC‑QD‑236

Pre‑order Features: 23.6‑inch front I/O industrial touch PC, fully‑sealed aluminum alloy housing, convenient front‑side USB access, fanless passive cooling, workshop production‑line visualization, HMI human‑machine interface terminal, 7×24‑hour continuous running

[Introduction]

YPC‑QD‑236 is a large‑size industrial all‑in‑one touch computer specially developed for smart‑factory production‑line visualization and on‑site HMI operation. It adopts robust fully‑enclosed aluminum alloy casing with passive fan‑less heat dissipation structure, effectively blocking dust and oil mist interference from harsh workshop environments. Front‑mounted USB interfaces bring great convenience for on‑site staff to insert U‑disk, data copy and on‑site debugging without opening cabinet. The high‑definition display delivers clear visual effect for real‑time production dashboard, process status display, alarm prompt and on‑site parameter setting. This industrial panel PC supports embedded, wall‑mount and VESA installation methods. Watchdog function and power‑on‑after‑power‑failure auto‑start guarantee stable unattended operation, friendly for secondary development of MES, SCADA and production visualization software.

[System]

Optional Intel low‑power Celeron / 10th‑12th Gen Core i3/i5/i7 processor; flexible configuration for DDR4 RAM and SSD storage; multi‑OS compatible including Windows 10 /11, Linux operating system; support watchdog, auto‑power‑on, RTC real‑time clock function for industrial unattended scenarios.

[Display & Touch]

23.6‑inch wide‑screen industrial LCD panel; resolution 1920*1080; high‑brightness LED backlight; wide viewing‑angle; optional projected capacitive multi‑touch or resistive touch; flat front panel with anti‑scratch tempered glass, suitable for frequent on‑site touch operation.

[Cooling & Mechanical]

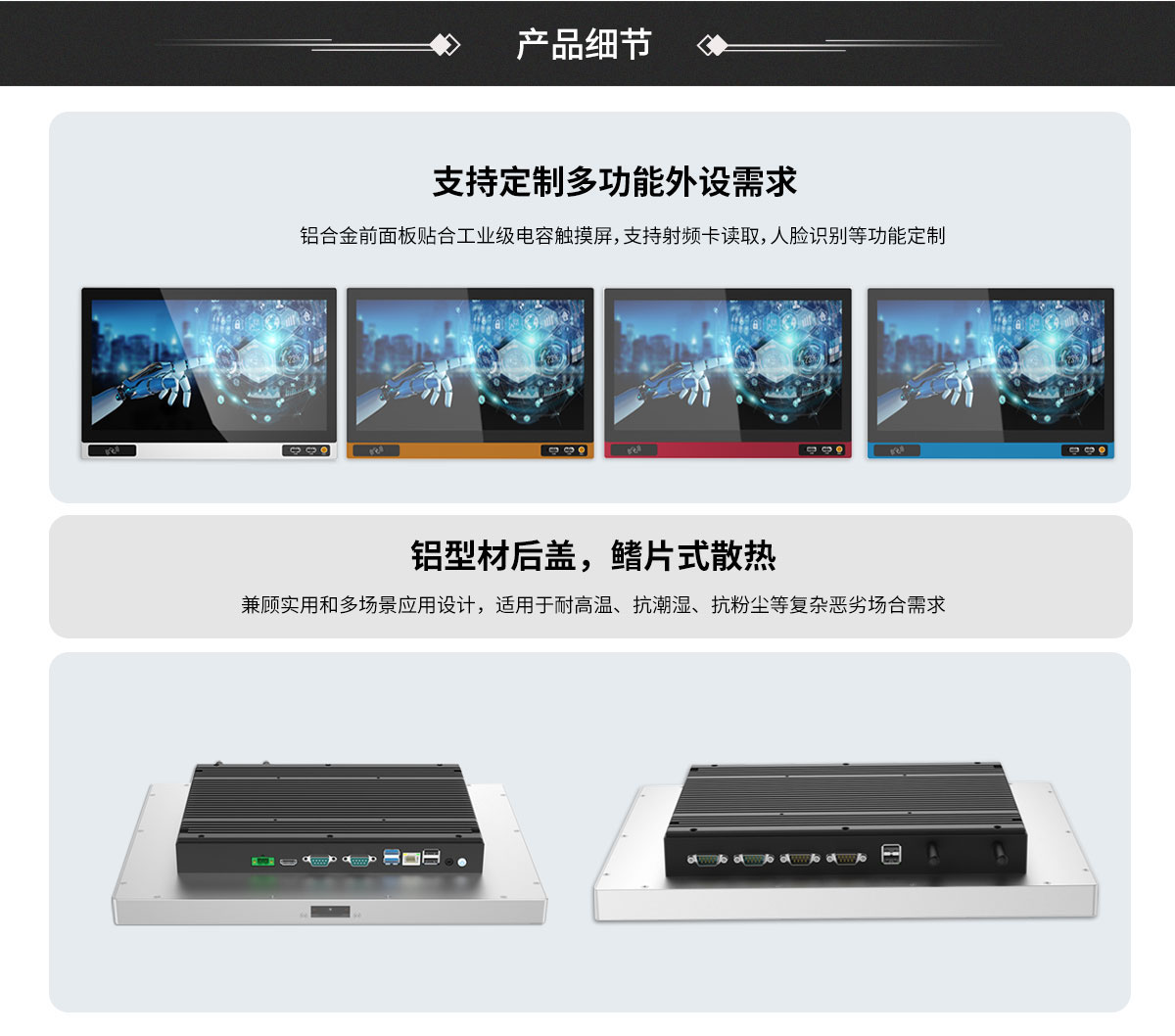

Fan‑less passive heat dissipation by aluminum alloy radiator; fully‑closed integrated metal housing prevents dust accumulation inside the device; multiple installation options: embedded panel mounting, wall mounting, standard VESA back‑hole for bracket installation; front‑side reserved USB I/O ports for convenient field operation.

[Environment & Interface]

Wide temperature working capability for factory‑workshop environment; support DC 9‑36V wide‑range industrial power input; equipped with Gigabit LAN, multiple COM serial ports, rear expansion interfaces together with front accessible USB ports, satisfy data acquisition, equipment communication and field data‑export requirements for production‑site HMI terminal.

[Application]

Smart factory production‑line visualization station, on‑site HMI operation terminal, MES & ESOP workshop data display, production monitoring, automation equipment cabinet control, industrial workshop real‑time dashboard system.

Specification
